Chick Chicken House Plans for 5000 Chickens
Application:broiler poultry house
Chicken cage model:H-Type broiler cage, 3 tiers, 90 birds/set
Chicken cage size:1500 mm×1000 mm×2250 mm
Number of chicken cages:56 sets
Number of chickens:90 birds/set ×14 sets/row ×4 row/house ＝5040 birds/house
Design layout:14 sets/row, 4 row/house
Poultry house size (L×W×H):29m×10m×4m
Poultry house beam height:>3750mm

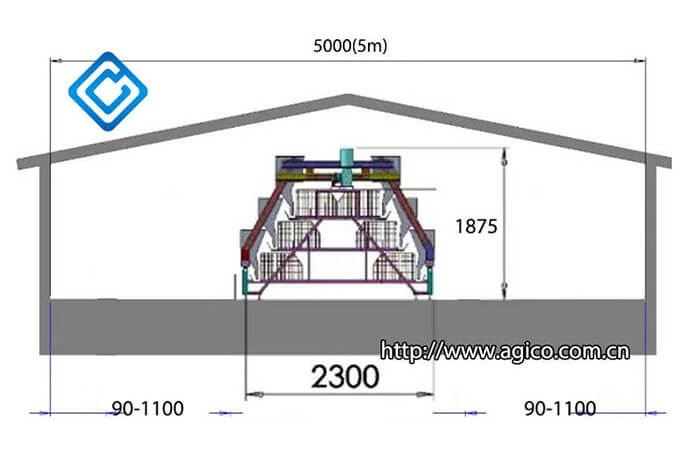

Details of Chick Chicken House Plans for 1000 Chickens
This plan is specially designed for a chick chicken houses with a breeding scale of 1,000 birds. The chicken cage configured in the 1000 chicks chicken house plan is3 tiers A-type chick brooding cage. The chick brooding cage is a cage specially used for raising baby chickens. The brooding cage net has a small gap and is suitable for baby chickens to step on. The height of both the feeding trough and the drinking device can be adjusted according to the height of the chicks. The 3 tiers A-type brooding cage can raise 180 chicks per group, and 6 groups can meet the feeding capacity of 1080 chickens.
The design size of the 1000-chickchicken houseis 19m×5m ×3m, and the size of each set of chicken cage is 2150mm×1870mm×1550mm. There are 6 sets of chick brooding cages, which are placed in a single row.
The 1000-chick chicken house can be equipped without automatic breeding equipment, or it can be configured according to the customer's budget and automation requirements. Automatic feeding, automatic drinking water, and automatic manure removal, and other automatic equipment, only one set of equipment for each row of chicken cages. Therefore, placing the chick brooding cages in a single row can effectively reduce the budget for equipment configuration.
| Type | Dimension(mm)/set | Tier | Door/tier | Bird/door | Bird/set |
|---|---|---|---|---|---|
| A Type | 1840×1900×2250 | 3 | 6 | 10 | 180 |
| Area/bird(cm²): 307 | |||||
Layout of Chick Chicken House Plans for 1000 Chickens

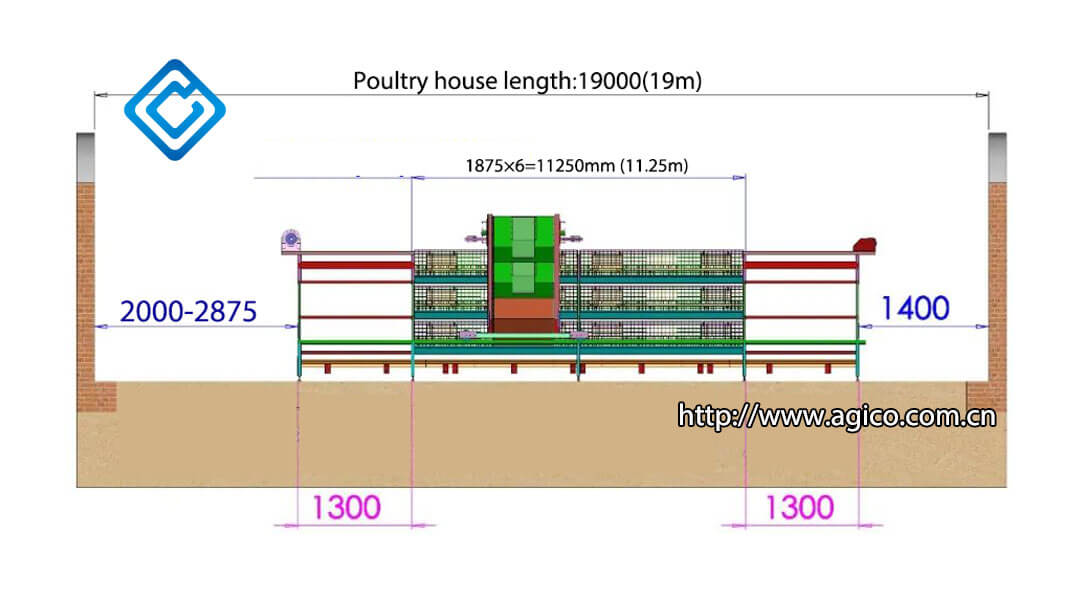

Length calculation and layout of 1000 chick chicken house
The naked length of each set of chick cages is1840mm, plus the reserved space and the thickness of the shelf legs, each set is about1875mm. The total length of6sets of chick brooding cages placed in a single row is1875×6=11250mm (11.25m). If the chick chicken house does not need to add automated breeding equipment, a total of2-3 metersof space can be reserved before and after. If you need to add automated farming equipment, you need to reserve6-7 metersof space.

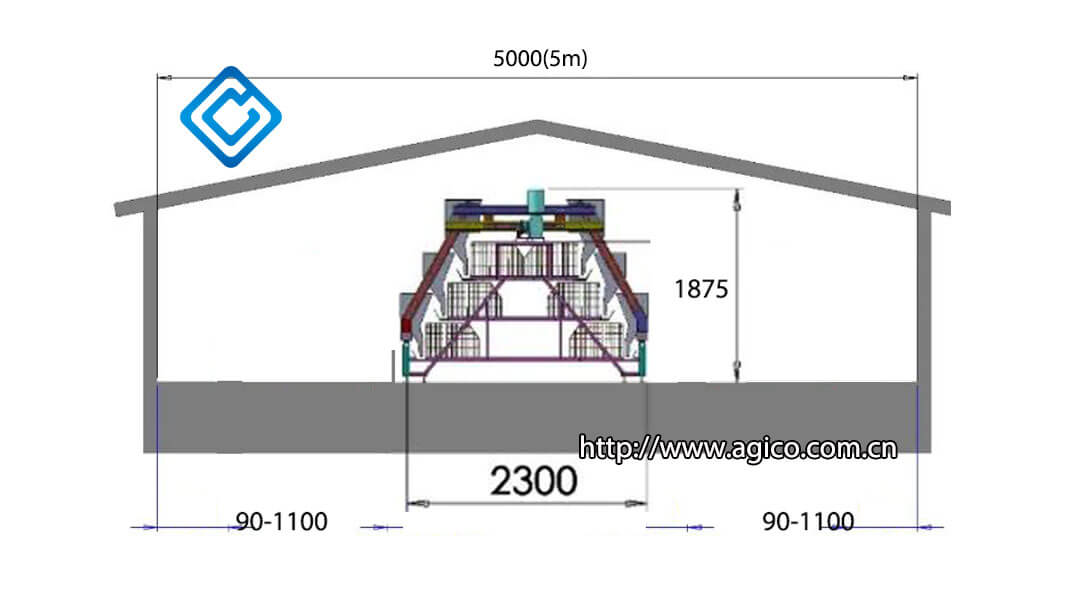

Width calculation and layout of 1000 chick chicken house
一个单一的宽度set of three tiers A-type chick brooding cages is1900mm, and the total width is2300mmwith the expansion width of rack legs and feeding equipment. The design interval between the chick brooding cage and the left wall is900mm -1100mm, and the chick brooding cage and the right wall are also kept at the same distance.
Height calculation and layout of 1000 chick chicken house
The height of the three tiers chick brooding cage is1580mm, and the height of the rack legs is1750mm. In addition to the800mmheadspace that needs to be reserved, the height of the house beam should be at least2550mm.

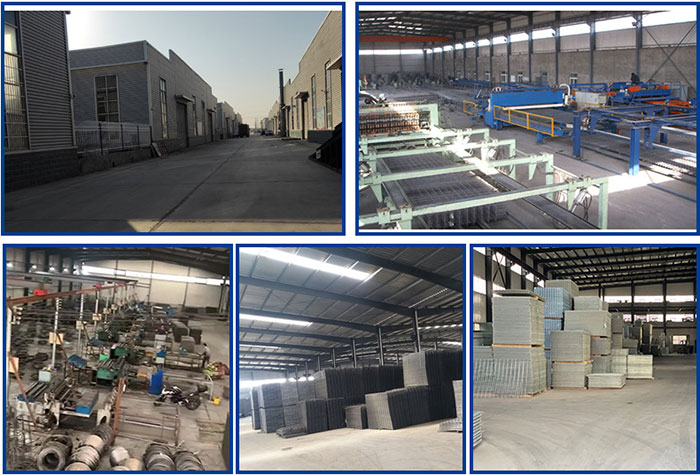

Reliable Chicken Cage Manufacturer
- AGICO has more than20years of experience in chicken cage product design and production. As a strong manufacturer in the breeding cage industry, the factory has sufficient stock of various types of chicken cages, and the specifications are complete.
- Our factory has a number of chicken cage production lines, many production equipment, and fast delivery. The daily output of the factory can reach10000sets, which can meet the supply of chicken cages for chicken house projects of various sizes.
- The chick cages, laying hen cages, and other products produced by AGICO are of reliable quality and are widely sold to more than50世界上国家和地区。鸡cage has a flat surface, uniform mesh, a simple structure, and strong bearing capacity.
