Layer Chicken House Plans for 500 Chickens
Application:layers chicken house
Chicken cage model:H-Type layer cage, 3 tiers, 144 birds/set
Number of chicken cages:4 sets
Design layout:4 sets/row, 1 row/house
Number of chickens:144 birds/set ×4 sets/row ×1 row/house ＝576 birds/house
Chicken house size (L×W×H):10m×4m×3m
Chicken cage size:1800 mm×1200 mm×2140 mm
Chicken house beam height:>2940mm
Details of Layer Chicken House Plans for 500 Chickens
Thischicken house planis specially designed forsmall-scalelaying hen production customers with a scale of500 laying hens. The plan uses4 sets of three-layerH-type layer cages, each cage can breed up to144 layers, and four sets of chicken cages can breed up to576 layers. Due to the small breeding volume, the layout of the chicken house is arranged in a single row. For small-scale laying hens, the plan is not equipped with fully automatic auxiliary breeding equipment. If customers have this demand, they can choose to add automatic manure cleaning, automatic drinking water, automatic feeding device, etc.
Specifications of 3-Tiers H-Type Layer Cage
| Model | Dimension(mm)/set | Tier | Door/tier | Bird/door | Bird/set |
|---|---|---|---|---|---|
| 1200 Type | 1800×1200×2140 | 3 | 8 | 6 | 144 |
| Area/bird(cm²): 450 | |||||
Layout of Layer Chicken House Plans for 500 Chickens
Length calculation and layout of chicken house
The length of each set 1200-type layer cages is1800 mm, plus the reserved space and the width of the legs, a total of1835 mm. The total length of the four groups of layer cages arranged in a single row is1835×4=7340mm (7.34m). The front section of the chicken house needs to reserve operating space, equipment placement space, etc., and the rear end also needs to reserve appropriate space, a total of2-3m.

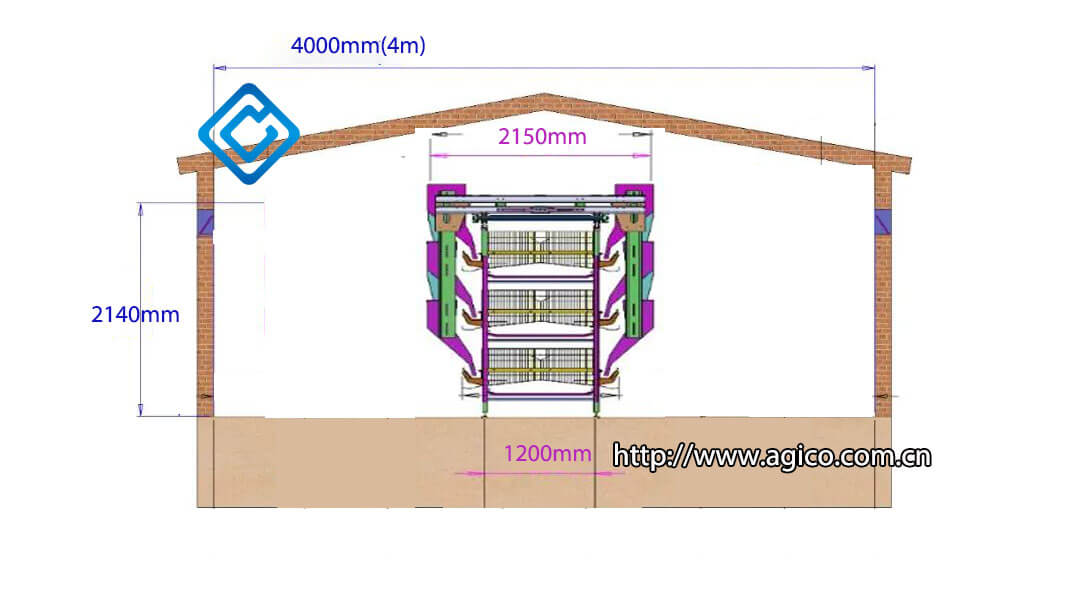

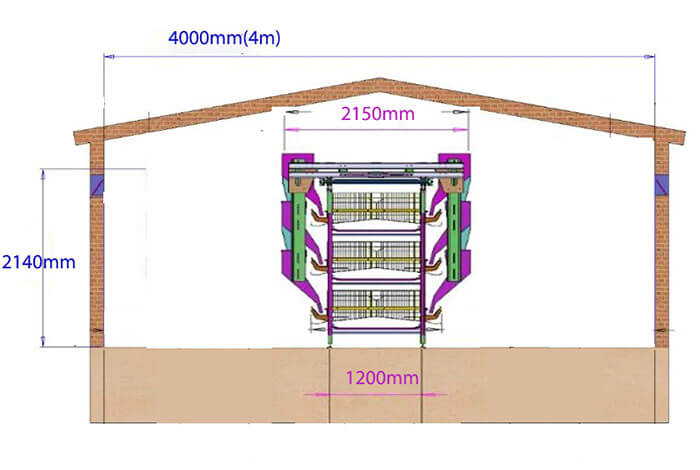

Width calculation and layout of chicken house
The 1200 type layer cage has a single cage raising space width of1200 mm, the finished product outer width is1560 mm, and the total outer width after adding the feeding machine is 2150 mm. There should be at least a width of more than600mmbetween the single-row chicken cage and the left and right walls. We do not recommend excessive compression of the aisle width to facilitate the normal passage of equipment and personnel.
鸡舍的高度计算和布局
The height of each layer of the 1200-type layer cage is650mm, and the height of the three-layer cage plus the leg frame is about2140mm. The height of the chicken house beam should be at least800mmhigher than the top of the chicken cage, so the height of the house beam should be at least2940mm.
Customization of Layer Chicken House Plans for 500 Chickens
鸡的房子和其内部布局是德gned based on500 chickens. The final chicken house size is10m×4m×3m, and the designed maximum breeding capacity is576 birds/house.
If the size of your chicken house has been determined, we are happy to provide the layout design of the chicken house and automatic breeding equipment for your chicken house. We have a professional team to provide you with a chicken house plan that suits you. Welcome to send us your requirements.
